Packer 53 is the strongest bailing press in our packer range. Robust metal design and 53 metric ton pressure power suits well for intensive use.

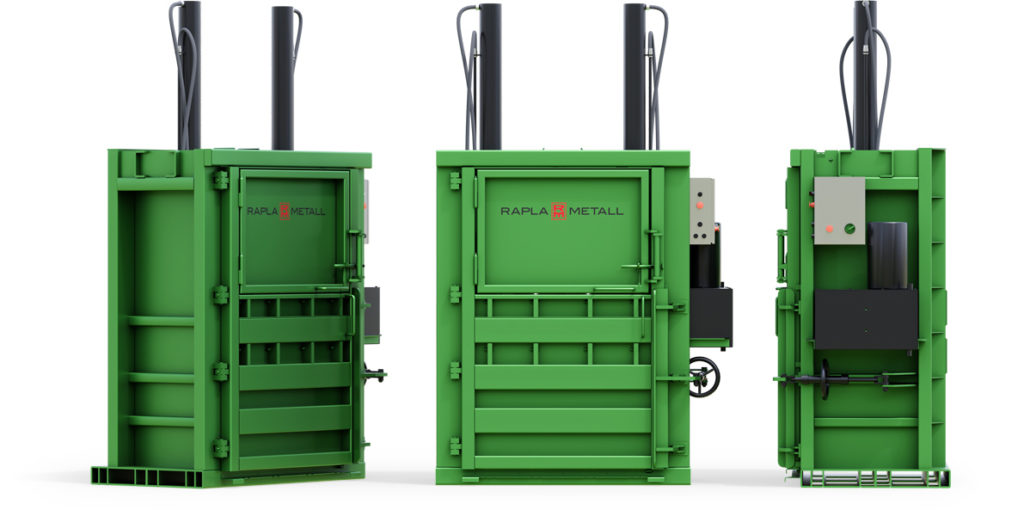

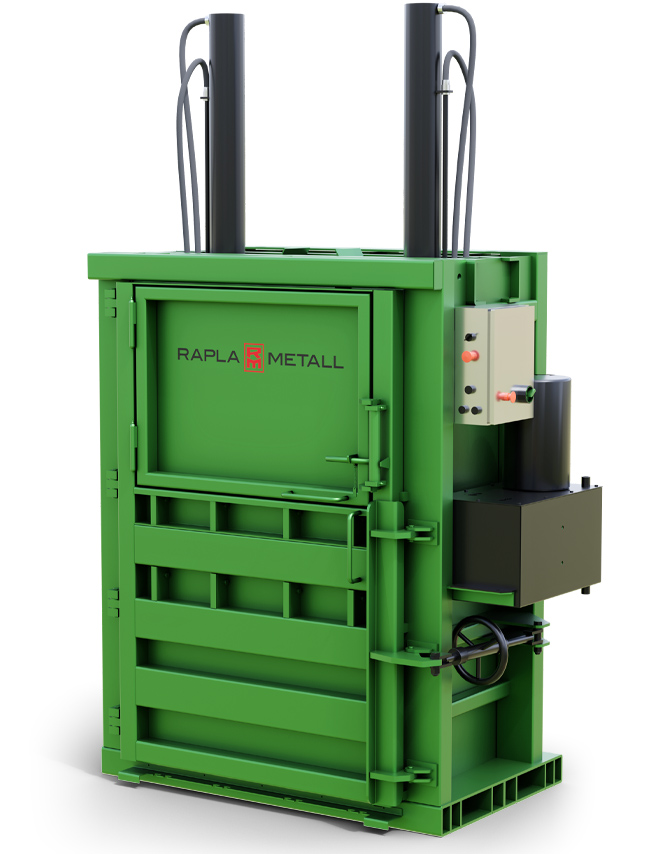

Packer 53 Bailing Press
- 53 ton pressure
- Large filling hole
- Automatic package dispatch
- Easy and safe to use
- Guarantee and support
- Spare parts immediate available
- Package balls are optimal for trailer and sea container transport
- IP55 protected
- CE marking on materials and electrical details
- Operating voltage 400V 50Hz 16A
| MODEL | UNIT | PACKER 16 | PACKER 35 | PACKER 53 |
|---|---|---|---|---|
| Weight | kg | 1350 | 1550 | 1950 |
| Wire dimensions | mm | Ø 2,8 x 3700 | Ø 2,8 x 3700 | Ø 2,8 x 3700 |
| Width (A) | mm | 1580 | 1820 | 1850 |
| Depth (B) | mm | 1000 | 1200 | 1300 |
| Height (C) | mm | 2000 | 2400 | 2900 |
| Loading height (D) | mm | 950 | 1260 | 1100 |
| Depth with open door (E) | mm | 1900 | 2620 | 2250 |
| Hydraulic power | t | 16 | 37 | 53 |
| Hydraulic cylinder | mm | ø 80/50 x 700 (2x) | ø 110 (125) – 600 – 60 ( 2x) | ø 120 (135) – 910 – 90 (2x) |
| Package ball size | mm | 1100 x 700 x 850 | 1200 x 800 x 1100 | 1200 x 800 x 1200 |
| Package ball bulk | kg | 180 – 300 | 300- 450 | 350- 550 |
| Packing tape | mm | 17 | 17 | 17 |
| Engine nominal power | kW | 4 | 5.5 | 7.5 |
| Operating voltage | 400V 50Hz 16A | 400V 50Hz 16A | 400V 50Hz 16A | |
| Protective measure | IP55 | IP55 | IP55 | |
| Noise level | db | < 79 | < 79 | < 79 |
| Pump | l/min | 23 | 23 | 23 |
| Oil amount | l | 40 | 40 | 40 |
| Hydraulic oil | HVLP 32 | HVLP 32 | HVLP 32 | |
| CE marking | + | + | + |
