Packer 16 is the smallest baler in our packer range. Stainless metal design and 16 metric ton pressure power suits well for food and beverages industry
WASTE AND PACKAGING HANDLING REDUCES THE ECOLOGICAL FOOTPRINT AND HELPS TO PROTECT THE ENVIRONMENT
Rapla Metall OÜ has been manufacturing packaging presses for handling cardboard / cardboard and film / plastic packaging since 2010. In 2017, a new product was developed as a stainless steel packaging press Packer 16SS for the food industry, which can handle cans, plastic bottles, food waste and packaging. The advantage of a conventional packaging press is the possibility to install the press in industrial indoor conditions according to the place where the most packaging occurs: different production lines, warehouses and logistics centers where cleanliness and sterility are required. Packer 16SS has a hydraulic capacity of 16 tons. Packaging waste is pressed in a press chamber into a square cube measuring 540 x 700 x 700 mm, the euro tray can hold 2 pieces. The pressed pack weighs 50-300 kg depending on the material to be pressed.

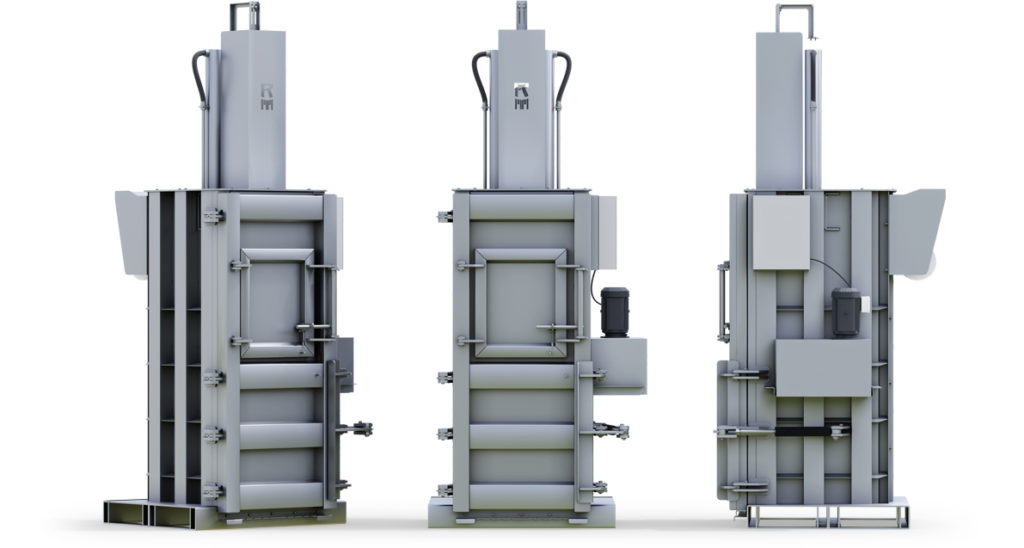

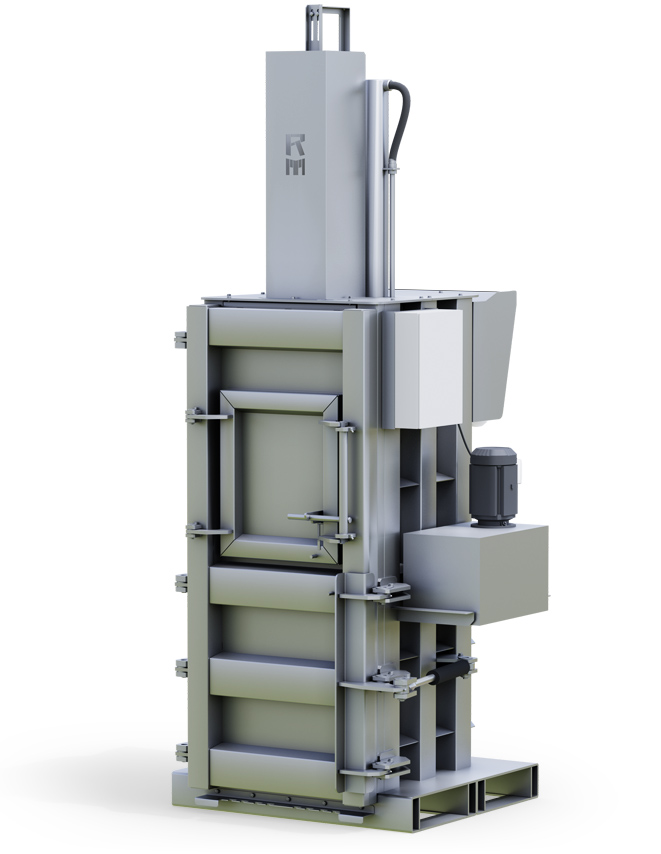

Packer 16 Stainless Steel Baler
- 16 ton pressure
- Large filling hole
- Automatic package dispatch
- Easy and safe to use
- Guarantee and support
- Spare parts immediate available
- Package balls are optimal for trailer and sea container transport
- IP55 protected
- CE marking on materials and electrical details
- Operating voltage 400V 50Hz 16A
Using a waste handling press is economical and helps to
save on costs:
- Transport cost
- Less space is needed for storing waste
- In addition, you do not need to pay for the so-called air-transport resulting from the waste transportation in open containers
- Waste is sorted immediately, i.e. film and paper/cardboard separately
- Handling press creates a cleaner working environment
- Waste handling press reduces a fire risk
- Package balls can be immediately directed to recycling; instead the waste would create costs, it will earn money
Advantages of our PACKER waste handling
presses:
- Large filling hole
- Automatic package dispatch
- Easy to use
- Being a domestic producer we guarantee that our products will operate from one year to another
- Spare parts: immediate availability of spare parts ensures a complete functionality of our products
- The weight and dimensions of package balls are optimal for the transport with a trailer as well as with a sea container
| MODEL | UNIT | PACKER 16 | PACKER 35 | PACKER 53 |
|---|---|---|---|---|
| Weight | kg | 1350 | 1550 | 1950 |
| Wire dimensions | mm | Ø 2,8 x 3700 | Ø 2,8 x 3700 | Ø 2,8 x 3700 |
| Width (A) | mm | 1580 | 1820 | 1850 |
| Depth (B) | mm | 1000 | 1200 | 1300 |
| Height (C) | mm | 2000 | 2400 | 2900 |
| Loading height (D) | mm | 950 | 1260 | 1100 |
| Depth with open door (E) | mm | 1900 | 2620 | 2250 |
| Hydraulic power | t | 16 | 37 | 53 |
| Hydraulic cylinder | mm | ø 80/50 x 700 (2x) | ø 110 (125) – 600 – 60 ( 2x) | ø 120 (135) – 910 – 90 (2x) |
| Package ball size | mm | 1100 x 700 x 850 | 1200 x 800 x 1100 | 1200 x 800 x 1200 |
| Package ball bulk | kg | 180 – 300 | 300- 450 | 350- 550 |
| Packing tape | mm | 17 | 17 | 17 |
| Engine nominal power | kW | 4 | 5.5 | 7.5 |
| Operating voltage | 400V 50Hz 16A | 400V 50Hz 16A | 400V 50Hz 16A | |
| Protective measure | IP55 | IP55 | IP55 | |
| Noise level | db | < 79 | < 79 | < 79 |
| Pump | l/min | 23 | 23 | 23 |
| Oil amount | l | 40 | 40 | 40 |
| Hydraulic oil | HVLP 32 | HVLP 32 | HVLP 32 | |
| CE marking | + | + | + |
